Horizontal CNC Machining

At JACO Machine Works, our engineers specialize in designing and producing complex parts for your projects using Horizontal CNC Machining. With over 40 years of experience and ISO9001:2015 & ASD9100 D certification, we process, assemble, clean, and meticulously inspect your parts, ensuring timely delivery and a seamless supply chain experience. Whatever your requirements, we have the capabilities and services to meet them consistently.

Horizontal Milling Centers (HMCs) are high-production machines that offer cost-effective setups and shorter turnaround times while enhancing accuracy through additional milling on a B-Axis. Unlike Vertical CNC Milling, an HMC’s spindle is oriented on a horizontal axis of rotation, parallel to the work surface. Instead of the familiar T-slot milling table, it features a square “pallet” precisely fitted to a B-Axis turntable. A fixture column mounted to the pallet provides a vertical surface where fixture plates or vises can secure workpieces. Meanwhile, the B-Axis can be rotated to present different faces to the spindle, enabling the machining of multiple sides of a part within a single fixture and program.

Features of our Horizontal CNC Machines:

Multi-pallet Management Systems – Equipped with a multi-pallet system, our HMCs can seamlessly and automatically transition between different workpieces. Multiple pallets mean multiple jobs set-up and loaded at the same time, minimizing machine downtime and maximizing productivity.
Cell Control Software – Our sophisticated cell control software ensures seamless coordination between different machining processes, streamlining operations while enhancing productivity and quality.
Automatic Tool Changers – During the machine process our automatic tool changers swiftly swap out tools enabling complex operations without manual interference.
High-Speed Cooled Spindle – Our precision-engineered spindles rotate at high RPMs ensuring rapid material removal, while the cooling system prevents overheating even during prolonged machining sessions. Whether it’s aluminum, stainless, or other alloys, our spindles repeatedly deliver exceptional results.
Renishaw OMP40 Spindle Probe – At JACO Machine Works, Quality is paramount. Equipping our Horizontal CNC machines with this sophisticated sensor allows accurate verification of part accuracy, detection of any deviations, and automatic adjustment of machining parameters as necessary.
High-Pressure Coolant Thru Spindle – Our Horizontal CNC machines incorporate a high-pressure coolant thru spindle system to prolong tool life and minimize thermal distortion. When the tool engages the workpiece, a focused stream of coolant directly cools the cutting edge ensuring excellent surface quality.

Customer Success Story

JACO Machine Works is a trusted supplier of precision optomechanical frames to a prominent manufacturer in the clinical eye care equipment industry. These critical components undergo meticulous machining processes within our automated horizontal machining cells which run overnight. The next day, our programmable Coordinate Measuring Machine (CMM) inspects the finished parts for quality assurance. Tumble finishing, sub-assembly, and Citric Passivation are performed in-house to complete the process.

Once complete, parts are delivered to the customer in reusable packaging directly to the customer’s optics cleanroom. Our Vendor Managed Inventory program ensures seamless supply chain management, and even earned us an award for outstanding quality and on-time delivery.

Horizontal CNC Milling Machines at JACO Machine Works

Our fleet of horizontal CNC milling machines and their specifications include:

♦ Kitamura HX250iF

Ideal for small parts with close tolerance and complex geometries.
Features include:

15,000 RPM, 10hp milling spindle.
250mm 2-pallet APC CNC table.
30-tool B30ATC.
FANUC 16i CNC controller.

♦ Matsuura H+300 PC11

Plenty of capacity for a variety of parts. Excellent for
high-mix, low-volume manufacturing. Features include:

20,000 RPM, 20hp spindle.
20x20x20” axis travel
11-pallet flexible cell system
240-tool ATC.

♦ Makino A51-A60

JACO’s very first – and most ruggedly built – milling machine!
Features include:

12,000 RPM
30hp spindle
22x22x20” axis travel
Dual 400mm pallet changer
60-tool ATC.

Industries Served

Whatever your application might be, our engineers are happy to assist in any way to bring your custom precision products to market. Our Horizontal CNC machining capabilities allow us to create components for virtually any industry, such as:

As an ISO9001:2015 & ASD9100 D certified manufacturer catering to all the above industries, JACO Machine Works understands that product traceability and lot control are non-negotiable requirements. That’s why we maintain full traceability throughout all our processes to stay in compliance with your rigorous regulatory specifications.

The Best Machining Services for Precision Components

Whatever your application might be, our engineers at JACO are happy to help bring your product to market in the shortest amount of time and at the lowest cost possible. We are committed to providing you with quality engineering, design services, and supply chain management that will exceed your expectations and meet every specification. In addition to our Horizontal CNC machine centers, we also offer:

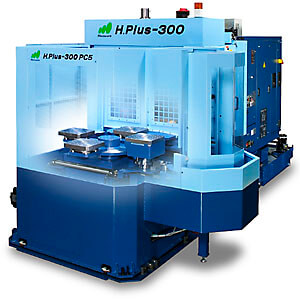

Horizontal Mill H Plus

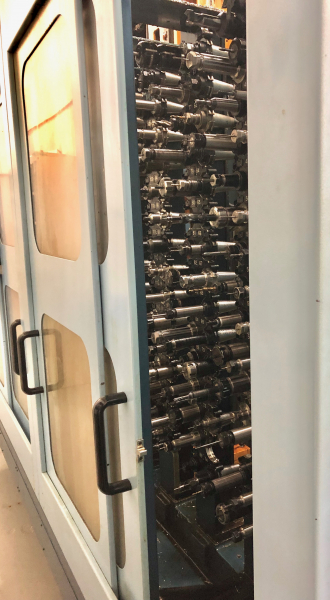

JACO CNC Mill Inside View
